Deye SUN-5K-SG05LP3-EU-SM2 Hybrid Inverter | 5 kW | 3-Phase | 2x MPPT | On/Off-Grid

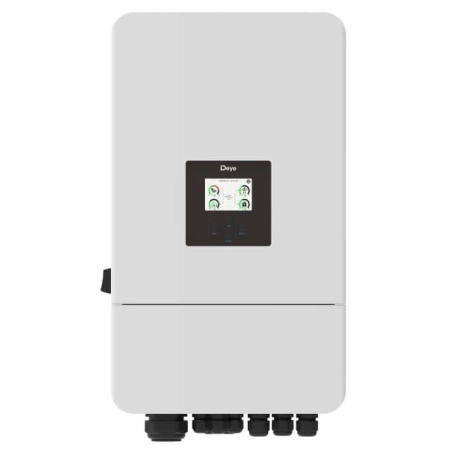

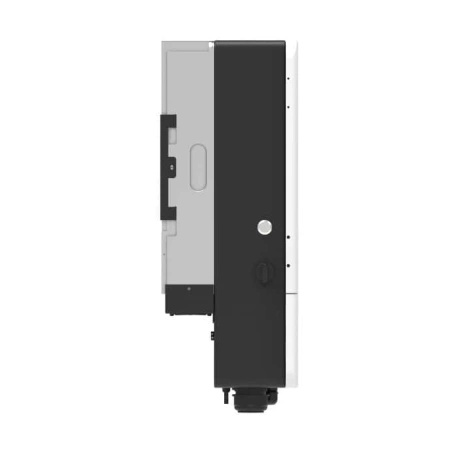

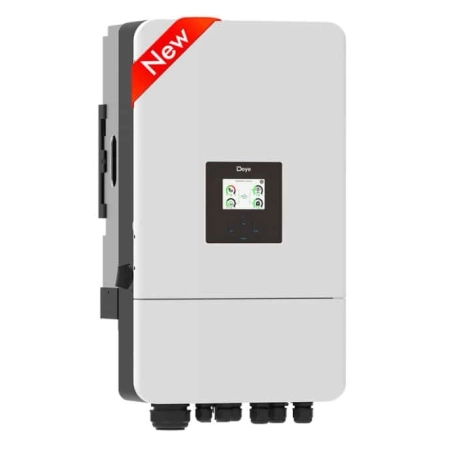

Deye SUN-5K-SG05LP3-EU-SM2 – 5 kW Three-Phase Hybrid Inverter
The Deye SUN-5K-SG05LP3-EU-SM2 hybrid inverter is a modern solution that lets you power your home without interruptions, save energy, and maximize the benefits of your photovoltaic installation.

Key Features

• Rated power 5 kW – ideal for single-family homes and small businesses.

• Three-phase 230/400 V output – stable power for all devices, including high-demand appliances.

• Two independent MPPT trackers – optimized performance under varying sunlight conditions (200–650 V range).

• Compatible with 48 V batteries (Li-Ion and AGM/gel) – max. charge/discharge current 120 A.

• On-grid, off-grid, and UPS modes – flexible operation for different user needs.

• Parallel operation up to 10 units – scalable for larger systems and energy storage setups.

• Built-in protection functions – safeguards against short circuits, overcurrent, surges, ground faults, and islanding detection.

• Online monitoring – supports Wi-Fi, LAN, GPRS, Bluetooth, or 4G (depending on version).

• Zero export function – option to prevent feeding energy back to the grid, maximizing self-consumption.

• Smart load and charging management – up to 6 programmable time slots for battery charge/discharge.

Technical Specifications

• AC output power: 5000 W

• Peak power (off-grid): up to 10,000 W for 10 seconds

• Max. PV input power: 7,500 W

• Max. PV voltage: 800 V

• Max. efficiency: 97.6%

• European efficiency: 97.0%

• Protection class: IP65 – suitable for indoor and outdoor installation

• Operating temperature: -40°C to +60°C

• Dimensions: 386 × 660 × 250 mm

• Cooling: smart air cooling

Why choose Deye SUN-5K-SG05LP3-EU-SM2?
✅ Provides uninterrupted power supply even during grid outages.
✅ Maximizes self-consumption of solar energy and reduces bills.
✅ Supports modern monitoring systems for full energy control.
✅ A solid, proven solution from Deye, compliant with European standards (EN 50549, VDE-AR-N 4105, and more).
