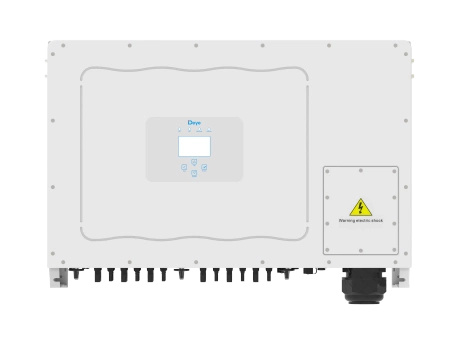

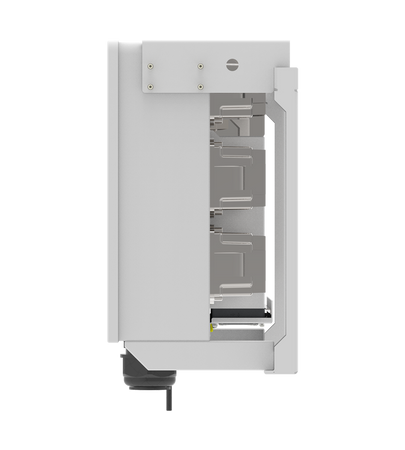

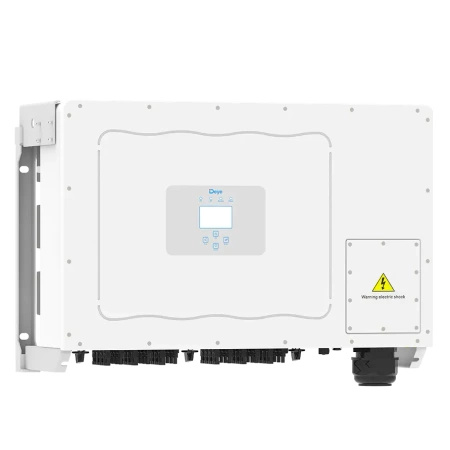

Deye SUN-100K-G03 three-phase string inverter
Deye SUN-100K-G03 three-phase string inverter
Deye SUN-100K-G03 three-phase string inverter
Deye SUN-100K-G03 three-phase string inverter
Deye SUN-100K-G03 three-phase string inverter
Deye SUN-100K-G03 three-phase string inverter

Deye SUN-100K-G03 three-phase string inverter

  • Deye SUN-100K-G03 three-phase string inverter.
3 725,15 €
incl. VAT / szt.
Lowest price in 30 days before discount: / szt.
Regular price: / szt.
of
Low stock
Low stock
14 days for easy returns
Safe shopping

Efficient Three-Phase Solar Inverter Deye SUN-100K-G03 – The Ideal Solution for Your Large-Scale Photovoltaic Installation!

Are you looking for a reliable and highly efficient inverter for your commercial or industrial photovoltaic installation? The Deye SUN-100K-G03 is an excellent choice, designed to maximize your solar energy profits.

This advanced three-phase inverter belongs to the highly regarded Deye SUN-G03 series, known for its high efficiency and advanced features. Thanks to multiple independent Maximum Power Point Tracking (MPPT) units, the inverter optimizes energy production even in complex installations with panels facing different directions or partially shaded.

Ensure the safety and long-term operation of your installation with the comprehensive protection system built into the Deye SUN-100K-G03. Its durable enclosure makes the device resistant to harsh weather conditions, guaranteeing reliable operation for many years.

The Deye SUN-100K-G03 is easy to monitor and manage thanks to various communication options. Additionally, its design has been developed for stable cooperation with the power grid.

By choosing the Deye SUN-100K-G03, you are investing in high quality and reliability, which translates into greater savings and a faster return on investment for your photovoltaic installation. The product comes with a 5-year warranty, further confirming its robustness.

Trust Deye technology and enjoy the maximum efficiency of your solar farm!

Brand
Symbol
SUN-100K-G03
Strona wejściowa
Max. PV Input Power (W)
150000
Maks. napięcie wejściowe DC (V)
1000
Start-up Voltage (V)
250
MPPT Voltage Range (V)
200-850
Max.PV(DC) Input Current (A)
40+40+40+40+40+40
Max. Input Short Circuit Current (A)
60+60+60+60+60+60
No.of MPPT Trackers / No.od Strings per MPPT Tracker
6/4
AC Output Side
Rated AC Output Active Power (W)
100000
Max. AC Output Apparent Power (W)
110000
Rated Output Voltage/Range (V)
3L/N/PE 380V/323V-418V, 400V/340V-440V
Rated Output Grid Frequency/Range (Hz)
50 / 60 (optional)
Grid Connection Form
3-phase
Rated AC Input/Output Current (A)
144.9
Max. AC Output Current (A)
159.4
Power factor
0.8 leading to 0.8 lagging
Prąd sieciowy THD
<3%
DC Injection Current (mA)
<0.5%
Rated Output Grid Frequency/Range(Hz)
47~52 lub 57~62 (opcjonalnie)
Efficiency
Max. Efficiency
98.7%
Euro efficiency
98.3%
MPPT Efficiency
>99%
Equipment Protection
DC Polarity Reverse Connection Protection
Yes
AC Output Overcurrent Protection
Yes
AC Output Overvoltage Protection
Yes
AC Output Short Circuit Protection
Yes
DC Terminal Insulation Impedance Monitoring
Yes
Ground Fault Current Monitoring
Yes
Island Protection Monitoring
Yes
Thermal Protection
Yes
Integrated DC switch
Yes
Remote software upload
Yes
Remote change of operating parameters
Yes
Ochrona przed przepięciami
DC typ II / AC typ II
General
Size (mm)
838 x 568 x 323
Net weight (kg)
81
Inverter Topology
Beztransformatorowa
Zużycie wewnętrzne
< 1W (noc)
Operating Temperature Range (°C)
-25~65℃, >45℃ obniżenie
Ingress Protection
IP65
Soundpower level (dB)
< 55 dB
Type of Cooling
Intelligent Air Cooling
Permissible Altitude (m)
2000m
Designed service life
> 20 years
Grid Regulation
CEI 0-21
VDE-AR-N 4105
NRS 097
IEC 62116
IEC 61727
G99
G98
VDE 0126-1-1
RD 1699
C10-11
Permissible Ambient Humidity
0-100%
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4
IEC/EN 62109-1
IEC/EN 62109-2
Characteristics
DC connection
MC-4 with plug
AC connection
IP65
Display
LCD 240 × 160
Interface
RS485/RS232/Wifi/LAN
