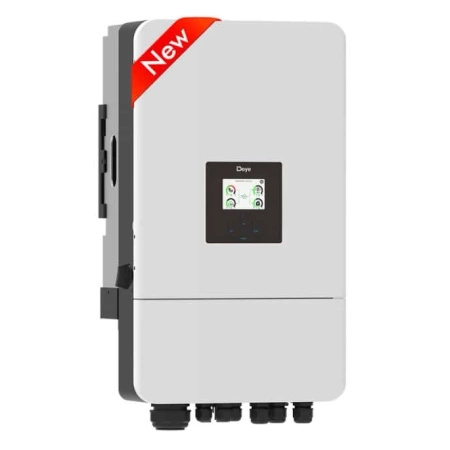

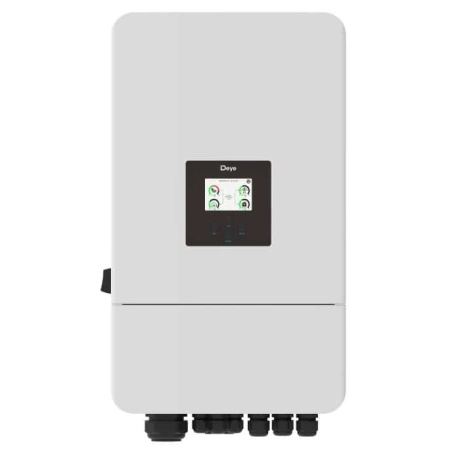

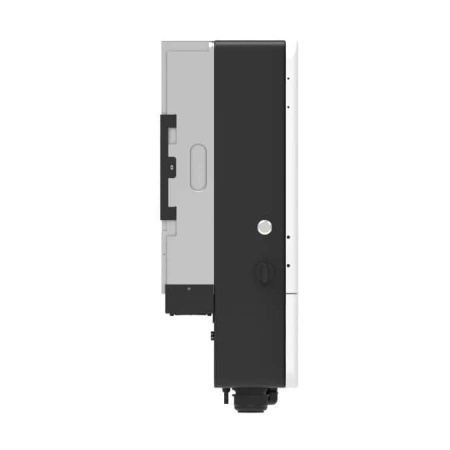

Deye SUN-10K-SG05LP3-EU-SM2 Hybrid Inverter | 10 kW | 3-Phase | 2x MPPT | On/Off-Grid

At EnergoShop.eu, we are passionate about efficient energy management, offering solutions that combine reliability with modern technology. We proudly present the Deye SUN-10K-SG05LP3-EU-SM2 hybrid inverter, a three-phase inverter that serves as the advanced heart of any photovoltaic system. This powerful Deye inverter is designed to provide full control over energy in both residential and commercial settings, ensuring independence and cost optimization.

The Deye SUN-10K-SG05LP3-EU-SM2 hybrid inverter is a versatile device that seamlessly connects with multiple power sources. It can integrate energy from photovoltaic panels, store it in batteries, and even work with diesel generators, providing uninterrupted and balanced power supply. This multifunctional inverter acts as both a solar charger and a battery charger, delivering stable power in every situation.

When it comes to harnessing solar energy, the SUN-10K-SG05LP3-EU-SM2 model is a true leader. It allows the connection of photovoltaic panels with a maximum input power of up to 15,000 W. With a wide MPPT voltage range from 200 to 650 V and two independent MPPT trackers, this inverter ensures maximum utilization of solar energy even in changing lighting conditions, providing an MPPT efficiency of over 99%.

The flexibility of this device is also evident in its energy storage management. The Deye SUN-10K-SG05LP3-EU-SM2 hybrid inverter is compatible with both lead-acid and lithium-ion batteries, giving the user full freedom in choosing an energy storage solution. The device offers an impressive maximum charging and discharging current of 210 A, resulting in fast and efficient energy transfers. Additionally, the self-adaptive battery management system (BMS) optimizes the charging process, ensuring safety and longevity of the connected batteries. Users can also take advantage of programmable power priorities (battery/grid), configurable charging current and voltage, and charging priority (AC/Solar/Generator). The inverter also supports the “Time of Use” function, allowing scheduling of battery charging and discharging based on energy tariffs.

In terms of performance, the Deye SUN-10K-SG05LP3-EU-SM2 inverter stands out with a maximum efficiency of 97.6% and a European efficiency of 97.0%, minimizing energy loss during conversion. Its rated AC output power of 10,000 W and ability to handle 100% unbalanced load per phase, with a maximum output power up to 50% of the nominal power, make it a reliable partner in a dynamic energy environment. The possibility of parallel connection of up to 10 units allows for easy system scaling as energy needs grow, both in on-grid and off-grid modes. It also features a Smart Load Function and a power limit function to prevent excessive energy export to the grid.

Safety and durability are the foundation of this inverter’s design. The device is equipped with a comprehensive protection package, including overcurrent, overvoltage, short-circuit protection, thermal protection, leakage current detection, and DC reverse polarity protection. With an IP65 rating, it is completely dust- and water-resistant, allowing for outdoor installation within a wide operating temperature range from -40 to +60℃. The intelligent air cooling system maintains optimal operating conditions, while its compact dimensions (386x660x253 mm) and weight (35.2 kg) facilitate installation.

For complete system control and monitoring, the Deye inverter offers rich communication options including GPRS, WIFI, Bluetooth, 4G, and LAN (optional), as well as RS485, RS232, and CAN interfaces. Compliance with international grid regulation and safety standards such as IEC 61727, IEC 62116, and EN 50549 confirms its reliability and safe operation.

At EnergoShop.eu, we focus on products that provide peace of mind and real savings. The Deye SUN-10K-SG05LP3-EU-SM2 hybrid inverter is an investment in the energy stability of your home or business. Enjoy independence supported by advanced technology and the expertise of the EnergoShop.eu team.
