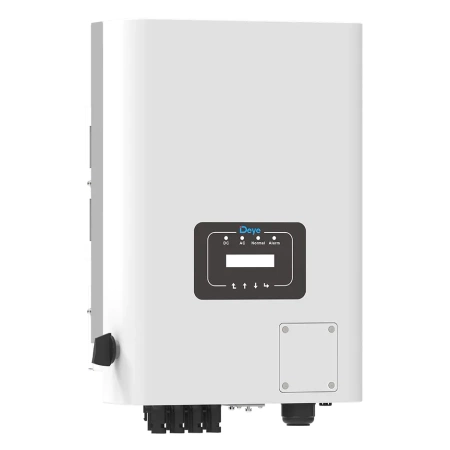

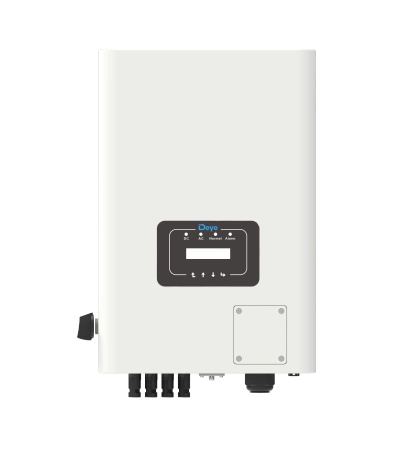

One of the features of the Deye SUN-20K-G04 three-phase inverter is its exceptional efficiency. With a maximum efficiency of 98.6%, the inverter ensures optimal energy conversion, minimizing losses and maximizing the return on investment.
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.
The Deye SUN-10K-SG04LP3-EU is a high-performance 10 kW three-phase hybrid inverter, engineered for both residential and commercial photovoltaic systems. Compatible with 48V lithium-ion and lead-acid batteries, it offers superior energy storage and smart management.
It supports 100% unbalanced loads on each phase, ensuring stable operation even in asymmetrical systems. The unit allows up to 16 devices to run in parallel, both on-grid and off-grid, providing flexibility and scalability. A built-in galvanic isolation transformer ensures enhanced safety and reliability.
Advanced protection features, integrated intelligent cooling, and comprehensive communication options (RS485, CAN, WiFi, LAN, GPRS) ensure seamless integration.
Responsible entityMarsun Solar Energy I sp. z o.o.Address:
Słoneczna 2Postal code: 63-300City: SuchorzewCountry: PolskaPhone number: +48 505 609 273E-mail: office@energoshop.eu
No.of MPPT Trackers / No.od Strings per MPPT Tracker
2/2
AC Output Side
Rated AC Output Active Power (W)
20000
Max. AC Output Apparent Power (W)
22000
Rated Output Voltage/Range (V)
3L/N/PE 380V/323V-418V, 400V/340V-440V
Rated Output Grid Frequency/Range (Hz)
50 / 60 (optional)
Grid Connection Form
3-phase
Rated AC Input/Output Current (A)
29
Max. AC Output Current (A)
31.9
Power factor
0.8 leading to 0.8 lagging
Mains current THD
<3%
DC Injection Current (mA)
<0.5%
Rated Output Grid Frequency/Range(Hz)
47~52 lub 57~62 (opcjonalnie)
Efficiency
Max. Efficiency
98.6%
Euro efficiency
97.83%
MPPT Efficiency
>99%
Equipment Protection
DC Polarity Reverse Connection Protection
Yes
AC Output Overcurrent Protection
Yes
AC Output Overvoltage Protection
Yes
AC Output Short Circuit Protection
Yes
DC Terminal Insulation Impedance Monitoring
Yes
Ground Fault Current Monitoring
Yes
Island Protection Monitoring
Yes
Thermal Protection
Yes
Integrated DC switch
Yes
Remote software upload
Yes
Remote change of operating parameters
Yes
Ochrona porzed przepięciami
DC typ II / AC typ II
General
Size (mm)
330 szer. × 508 wys. × 206 gł.
Net weight (kg)
20.8
Inverter Topology
Beztransformatorowa
Zużycie wewnętrzne
< 1W (noc)
Operating Temperature Range (°C)
-25~65℃, >45℃ obniżenie
Ingress Protection
IP65
Soundpower level (dB)
< 45 dB
Type of Cooling
Intelligent Air Cooling
Permissible Altitude (m)
2000m
Designed service life
> 20 years
Grid Regulation
CEI 0-21
VDE-AR-N 4105
NRS 097
IEC 62116
IEC 61727
G99
G98
VDE 0126-1-1
RD 1699
C10-11
Permissible Ambient Humidity
0-100%
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4
IEC/EN 62109-1
IEC/EN 62109-2
Characteristics

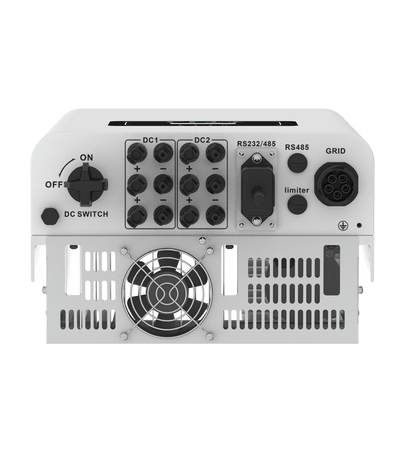

DC connection
MC-4 with plug
AC connection
IP65
Display
LCD1602
Interface
RS485/RS232/Wifi/LAN
To download
Zasoby dotyczące bezpieczeństwa i produktów
Manufacturer warranty 10 years
Manufacturer warranty 10 years
