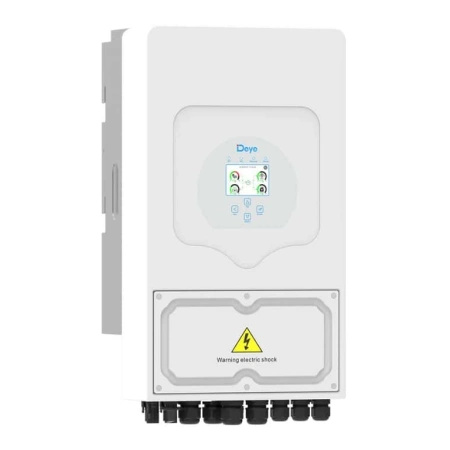

Deye SUN-3.6K-SG03LP1-EU hybrid inverter
Deye SUN-3.6K-SG03LP1-EU hybrid inverter
- The Deye SUN-3.6K-SG03LP1 inverter is a versatile and robust single-phase hybrid inverter designed for energy management in both residential and commercial settings.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
 |
Color touch LCD display, IP65 protection degree |
 |
Possibility of DC and AC coupling to retrofit existing solar system |
 |
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel |
 |
Max. charging/discharging current of 190A |
 |
6 time periods for battery charging/discharging |
 |
Support storing energy from diesel generator |
Technical parameters
| Battery Input Data | |
|---|---|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40~60 |
| Max. Charging Current (A) | 90 |
| Max. Discharging Current (A) | 90 |
| External Temperature Sensor | Yes |
| Charging Curve | 3 Stages / Equalization |
| Charging Strategy for Li-ion Battery | Self-adaptation to BMS |
| PV String Input Data | |
| Max. DC Input Power (W) | 4680 |
| Nominal PV Input Voltage (V) | 370 (125~500) |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Full Power Voltage Range (V) | 300-425 |
| PV Input Current (A) | 13+13 |
| Max. PV ISC (A) | 17+17 |
| Number of MPPT Trackers / Strings per MPPT | 2/1+1 |
| AC Output Data | |
| Nominal AC Output and UPS Power (W) | 3600 |
| Max. AC Output Power (W) | 3690 |
| Nominal AC Output Current (A) | 16.4 |
| Max. AC Current (A) | 18 |
| Max. Continuous AC Current Through (A) | 35 |
| Peak Power (off grid) | 2 times nominal power, 10 S |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50/60 Hz; L/N/PE 220/230 Vac (Single Phase) |
| Grid Type | Single Phase |
| DC Injection Current (mA) | THD < 3% (Linear load < 1.5%) |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| Integration | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistance Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Short Circuit Protection, Surge Protection |
| Output Over Voltage Protection | DC Type II / AC Type III |
| Certificates and Standards | |
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
| EMC / Safety Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Operating Temperature Range (°C) | -45~60℃, >45℃ Derating |
| Cooling | Passive |
| Noise (dB) | < 30 dB |
| BMS Communication | RS485; CAN |
| Weight kg | 20.5 |
| Size (mm) | 330 W x 580 H x 233 D |
| Protection Degree | IP65 |
| Installation Style | Wall Mounted |
| Warranty | 5 years |
