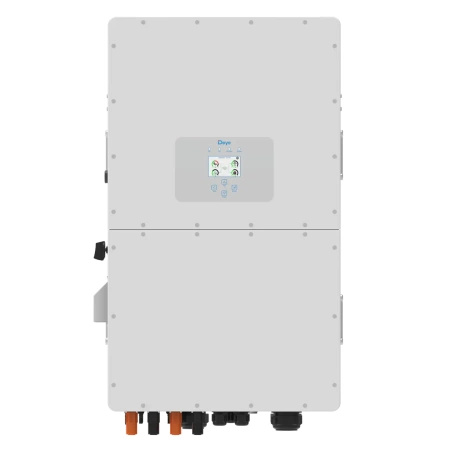

Deye SUN-30K-SG01HP3-EU three-phase hybrid inverter

	100% unbalanced power, each phase; max. output power up to 50% of rated power
	Possibility to connect to DC and AC power to upgrade an existing solar system
	Max. 16 units in parallel for on-grid and off-grid operation; support for multiple batteries in parallel
	Max. charging/discharging current 74A
	High-voltage battery, higher efficiency
	6 periods of battery charging/discharging
	Possibility to store energy from a diesel generator

Deye SUN-30K-SG01HP3-EU is advanced three-phase hybrid inverter from the SUN-29.9/30/35K-SG01HP3-EU-BM3 series, engineered for robust performance and efficient energy management in both residential and commercial settings. This model, part of a family that includes the SUN-29.9K-SG01HP3-EU-BM3, SUN-35K-SG01HP3-EU-BM3, as well as SUN-40K-SG01HP3-EU-BM4 and SUN-50K-SG01HP3-EU-BM4, focuses on high efficiency, seamless integration, and advanced protection features, offering a versatile solution for modern energy needs.

The Deye SUN-30K-SG01HP3-EU inverter stands out with its exceptional energy management capabilities, supporting a maximum charging and discharging current of 100A (divided into two 50A inputs), ensuring significant flexibility in meeting energy storage demands. It is compatible with Lithium-ion batteries with a wide voltage range of 160V to 800V, which translates to higher operational efficiency and more effective energy storage due to the use of high-voltage batteries. Furthermore, it enables energy storage from diesel generators, making it an ideal choice for regions with unstable power supply. Users can configure up to six time periods for battery charging and discharging, allowing for precise adjustment of energy usage tailored to specific needs.

Flexibility and scalability are key attributes of this inverter. The Deye SUN-30K-SG01HP3-EU supports parallel operation of up to 10 units for both on-grid and off-grid scenarios, providing scalable energy solutions for larger installations. It also supports multiple batteries in parallel, thereby meeting higher energy storage requirements. The AC Coupling function makes it an excellent solution for retrofitting existing solar systems, allowing for seamless integration without significant overhauls. Additionally, this inverter offers 100% unbalanced output on each phase, enhancing power supply flexibility and reliability.

In terms of electrical specifications, the Deye SUN-30K-SG01HP3-EU features a rated AC input/output active power of 30 kW, with a maximum AC output apparent power capable of reaching 33,000 VA. It has two battery inputs, with a maximum charging/discharging current of 100A (50A per input). Regarding PV input, the maximum PV input power for the 30K model is 39,000 W, with a maximum PV input voltage of 1000V and an MPPT voltage range from 150V to 850V. The device is equipped with 3 or 4 MPPT trackers depending on the model, with PV input current up to 4x36A or 3x36A.

High efficiency and comprehensive protection features are standard for this inverter. The SUN-30K-SG01HP3-EU model achieves a maximum efficiency of 97.6%, with a European efficiency of 97% and MPPT efficiency exceeding 99%. Integrated protections include DC polarity reverse connection protection, AC output overcurrent/overvoltage/short circuit protection, ground fault current monitoring, surge protection (Type II for DC and AC), island protection, and thermal protection. Output shutdown is implemented with single fault tolerance, using two series-connected relays in each phase and neutral line, ensuring safe grid disconnection in case of an error. The inverter also includes a limit function to prevent excessive power overflow to the grid.

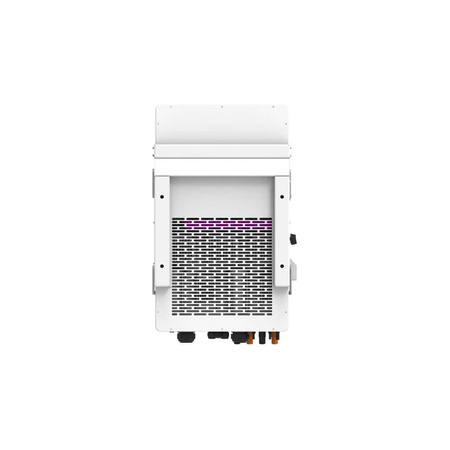

Regarding physical and environmental characteristics, the inverter is robust and adapted to harsh conditions. It can operate in temperatures from -40°C to +60°C (with derating above 45°C) and has an IP65 protection rating, meaning it is resistant to dust and water jets. The noise generated by the device does not exceed 65 dB, and cooling is managed by an intelligent air cooling system. The inverter weighs 80 kg, and its dimensions are 527 x 894 x 294 mm (excluding connectors and brackets).

Communication and monitoring are intuitive and versatile. The inverter supports monitoring modes such as GPRS, WIFI, Bluetooth, 4G, and LAN (optional), as well as RS485, RS232, and CAN communication interfaces. The intuitive LCD display allows for easy configuration and access to operational data. The inverter offers various operating modes, including on-grid, off-grid, and UPS, with programmable power supply priority from battery or grid.

Compliance with standards and certifications confirms the high quality and safety of the product. The Deye SUN-30K-SG01HP3-EU complies with a wide range of grid regulations, including IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105. It also meets safety standards IEC/EN 61000-6-1/2/3/4 and IEC/EN 62109-1/2. It holds certificates of conformity that confirm its ability to meet connection requirements for Type A electrical generation modules in Spain and Type A and B in Poland, in accordance with Commission Regulation (EU) 2016/631 (NC RFG). The EU Declaration of Conformity confirms compliance with EMC, LVD, and RoHS directives.

The standard warranty for the Deye SUN-30K-SG01HP3-EU inverter is 5 years, extendable to 10 years, depending on the installation site.
By choosing the Deye SUN-30K-SG01HP3-EU hybrid inverter, you are investing in a reliable, efficient, and future-proof solar energy management solution that will meet the demands of both residential and commercial photovoltaic installations. Contact us at energoshop.eu to learn more about this innovative product!
