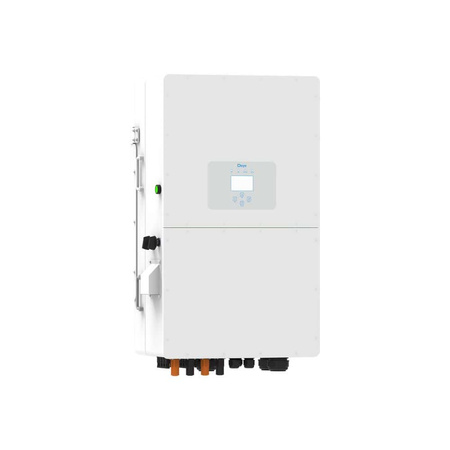

Deye SUN-35K-SG01HP3-EU three-phase hybrid inverter
Deye SUN-35K-SG01HP3-EU three-phase hybrid inverter
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
 |
100% unbalanced power, each phase; max. output power up to 50% of rated power |
 |
Possibility to connect to DC and AC power to upgrade an existing solar system |
 |
Max. 16 units in parallel for on-grid and off-grid operation; support for multiple batteries in parallel |
 |
Max. charging/discharging current 74A |
 |
High-voltage battery, higher efficiency |
 |
6 periods of battery charging/discharging |
 |
Possibility to store energy from a diesel generator |
Technical Parameters
| Battery Input Data | |
|---|---|
| Battery Type | Lead-acid or lithium-ion |
| Battery Voltage Range (V) | 200~700 |
| Max. Charging Current (A) | 37+37 |
| Max. Discharging Current (A) | 37+37 |
| Number of Battery Inputs | 2 |
| Charging Curve | 3 stages / equalization |
| Lithium-ion Battery Charging | Self-adaptation to BMS system |
| PV String Input Data | |
| Max. DC Input Power (W) | 45500 |
| Max. DC Input Voltage (V) | 1000 |
| Start-up Voltage (V) | 180 |
| MPPT Range (V) | 150-850 |
| Rated DC Input Voltage (V) | 600 |
| DC Voltage Range at Full Load (V) | 360-850 |
| Rated DC Input Voltage (V) | 600 |
| PV Input Current (A) | 36+36+36 |
| Max. PV ISC (A) | 50+50+50 |
| Number of MPPTs / Strings per MPPT | 3/2+2+2 |
| AC Output Data | |
| Rated AC Output and UPS Power (W) | 35000 |
| Max. AC Output Power (W) | 38500 |
| Rated AC Output Current (A) | 53.1/50.8 |
| Max. AC Current (A) | 60 |
| Max. Continuous AC Current Flow (A) | 200 |
| Peak Power (Off-Grid) | 1.5 times rated power, 10 S |
| Generator Input/Smart Charging/AC Coupling Current (A) | 53.1 / 200 / 53.1 |
| Power Factor | 0.8 leading to 0.8 lagging |
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE 220/380, 230/400Vac |
| Grid Type | Three-phase |
| DC Current Injection (mA) | <0.5%1n |
| Efficiency | |
| Max. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Protection | |
| Integration | PV input lightning protection, anti-islanding protection, PV string input reverse polarity protection, insulation resistance detection, residual current monitoring module, output overcurrent protection, output short circuit protection, overvoltage protection |
| Output Overvoltage Protection | DC type II/AC type III |
| Certifications and Standards | |
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 |
| EMC / Safety Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| General Data | |
| Operating Temperature Range (°C) | -45~60℃, >45℃ derating |
| Cooling | Intelligent cooling |
| Noise (dB) | < 45 dB |
| BMS Communication | RS485; CAN |
| Weight kg | 60 |
| Size (mm) | 560.5 W × 837 H × 319 D |
| Protection Degree | IP65 |
| Installation Style | Wall mounting |
| Warranty | 5 years |
