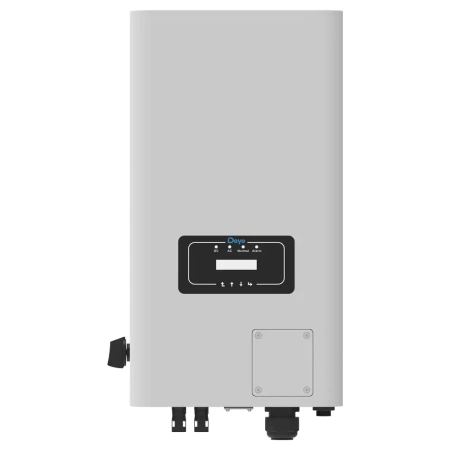

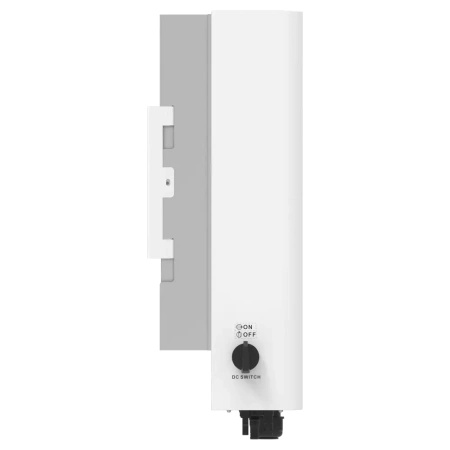

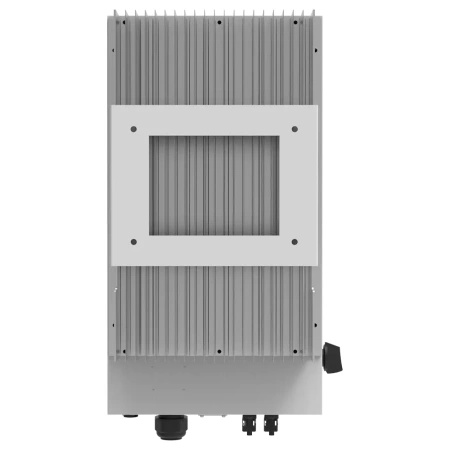

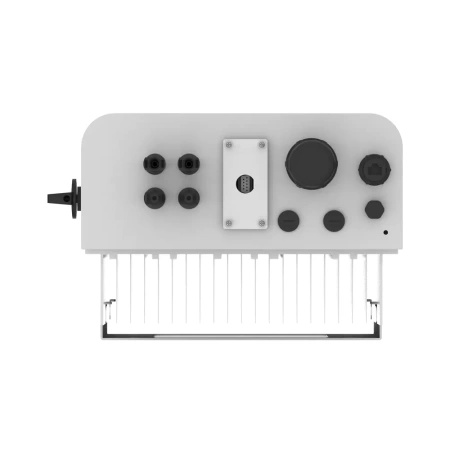

Deye SUN-4K-G06P3-EU-BM2-P1 | three-phase grid inverter | 4 kW

Deye SUN-4K-G06P3-EU-BM2-P1 – 4 kW three-phase photovoltaic inverter

The Deye SUN-4K-G06P3-EU-BM2-P1 is a modern three-phase inverter designed for photovoltaic installations in homes and small businesses. With its high efficiency of up to 98.2%, wide input voltage range, and advanced protection features, it ensures maximum utilization of solar energy and safe PV system operation.

Key features:

• 4 kW output power – ideal choice for households and small PV systems.

• Two MPP trackers (2 MPPT) – enable optimal performance with panels at different angles and sunlight conditions.

• Wide MPPT voltage range (120–1000 V) – greater flexibility in system design.

• Maximum efficiency 98.2% and European efficiency 97.6% – high performance with minimal energy loss.

• Compliance with European standards (EN 50549, VDE-AR-N 4105, G98, G99) – seamless grid integration.

• Natural cooling and compact IP65 enclosure – high durability and suitable for outdoor installation.

• Built-in protections – against surges (DC/AC, type II), short circuits, overload, reverse polarity, and leakage current detection.

• Optional communication (WiFi, LAN, 4G, RS485/RS232) – remote monitoring and management of the PV system.

Why choose the Deye SUN-4K-G06P3-EU-BM2-P1?

This inverter combines high reliability with ease of use. With zero export technology, it is possible to limit excess energy fed into the grid, helping to meet operator requirements. The VSG (Virtual Synchronous Generator) function enhances system stability, and optional string-level monitoring allows quick diagnostics and performance optimization.

Technical specifications (selected parameters):

• AC output power: 4 kW

• Max. PV input power: 6 kW

• Number of MPPT: 2

• MPPT voltage range: 120–1000 V

• Start-up voltage: 600 V

• Max. input current: 2 × 20 A

• Max. efficiency: 98.2%

• Operating temperature range: -25°C to +60°C

• Protection rating: IP65

• Dimensions: 283 × 525 × 178 mm

The Deye SUN-4K-G06P3-EU-BM2-P1 is the perfect inverter for those looking for an efficient, reliable, and future-proof photovoltaic solution. It is well-suited for both new PV systems and the modernization of existing installations.
