Deye SUN-4K-G06P3-EU-BM2-P1 | three-phase grid inverter | 5 kW

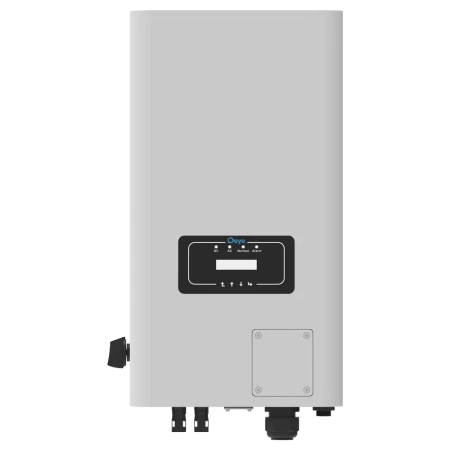

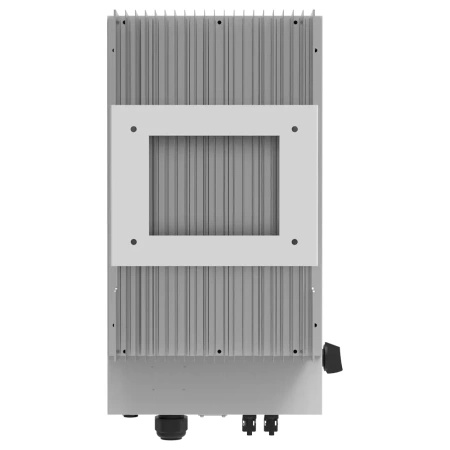

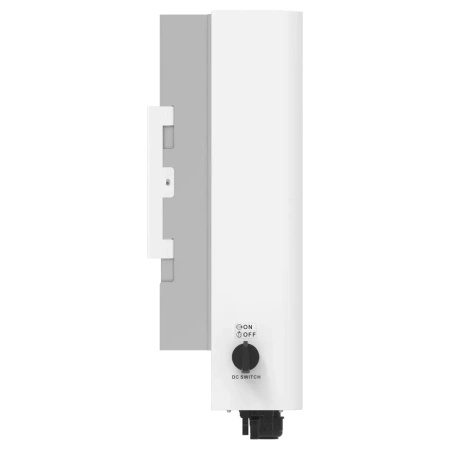

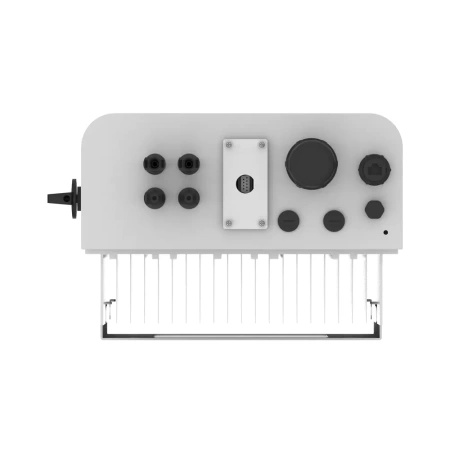

Deye SUN-5K-G06P3-EU-BM2-P1 – 5 kW Three-Phase Photovoltaic Inverter

The Deye SUN-5K-G06P3-EU-BM2-P1 is a high-performance, modern three-phase inverter designed for photovoltaic installations in single-family homes and small businesses. With a high efficiency of 98.2%, two independent MPPT trackers, and comprehensive protection systems, it ensures stable and efficient PV system operation under all conditions.

Key Features:

• 5 kW output power – ideal for medium-sized installations.

• 2 independent MPPT trackers (2 × 20 A) – optimizes performance with panels installed at different angles.

• Wide MPPT voltage range (120–1000 V) – greater flexibility in PV system design.

• Maximum efficiency 98.2% and European efficiency 97.6% – low energy losses.

• Compact IP65 enclosure – dust- and water-resistant, suitable for outdoor installation.

• Full protection package – surge protection (DC/AC, type II), short-circuit, thermal, overload, RCD, and reverse polarity protection.

• Connectivity and monitoring – optional WiFi, LAN, 4G, RS485/RS232 modules; easy remote management and system monitoring.

• Support for zero export and VSG (Virtual Synchronous Generator) functions – enhanced stability and grid compliance.

Why choose the Deye SUN-5K-G06P3-EU-BM2-P1?

This inverter combines high efficiency, safety, and modern technology. The dual MPPT trackers increase energy yield even in challenging sunlight conditions, while the extensive protection set safeguards the installation from failures. Natural cooling ensures quiet, maintenance-free operation.

Technical Specifications (selected parameters):

• AC output power: 5 kW

• Max. PV input power: 7.5 kW

• Number of MPPT: 2

• MPPT voltage range: 120–1000 V

• Start-up voltage: 600 V

• Max. input current: 2 × 20 A

• Maximum efficiency: 98.2%

• European efficiency: 97.6%

• Operating temperature range: -25°C to +60°C

• Protection rating: IP65

• Dimensions: 283 × 525 × 178 mm

The Deye SUN-5K-G06P3-EU-BM2-P1 is a reliable and efficient inverter for those seeking a robust solution for PV installations up to 5 kW. It combines ease of use with professional protection and monitoring features.
