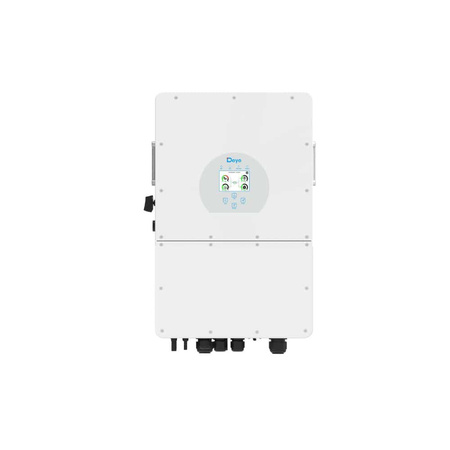

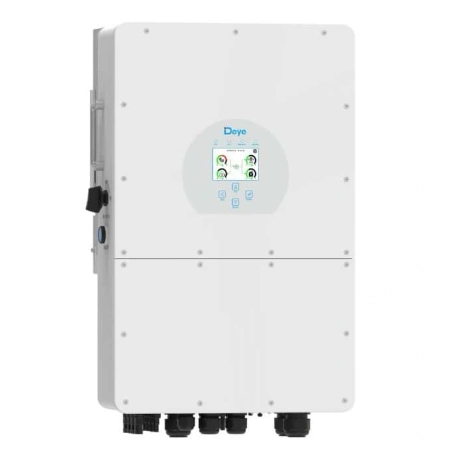

Deye SUN-6K-SG01HP3-EU is a modern high-voltage hybrid inverter with 6 kW power, designed for both on-grid and off-grid systems. The device integrates the functions of a grid-tied inverter and energy storage management, allowing maximum use of solar energy and increased energy independence.
Main features:
High-voltage inverter – compatible with lithium-ion batteries with a voltage range from 160 to 700 V, ensuring higher efficiency and lower energy losses.
Rated power: 6 kW – an ideal choice for residential and small commercial installations.
High efficiency: up to 97.6% (European efficiency 97.0%), MPPT tracking efficiency >99%.
System expansion: parallel operation of up to 10 inverters in both grid-connected and off-grid modes.
Flexible energy management: 6 programmable battery charge and discharge periods – ideal for cost optimization under variable energy tariffs.
Compatibility with generator and existing PV systems: support for a power generator and AC-coupling function.
Safe operation: protections against overvoltage (type II DC and AC), overload, short circuit, reverse polarity, RCD, and optional AFCI.
Durable housing: IP65 protection rating, operating temperature from -40°C to +60°C.
Easy monitoring: support for GPRS/WiFi/Bluetooth/4G communication, RS485/RS232/CAN ports, and a clear LCD display.
Key technical parameters:
Output power (AC): 6,000 W
Max. PV input power: 8,000 W
MPPT voltage range: 150–850 V
Max. battery charge/discharge current: 30 A
Dimensions: 408 × 638 × 237 mm
👉 Deye SUN-6K-SG01HP3-EU is a powerful high-voltage hybrid inverter that combines solar energy generation with storage capability, giving the user greater independence and full control over electricity consumption.
Responsible entityMarsun Solar Energy I sp. z o.o.Address:
Słoneczna 2Postal code: 63-300City: SuchorzewCountry: PolskaPhone number: +48 505 609 273E-mail: office@energoshop.eu
Wejście generatora/inteligentne ładowanie /Prąd sprzężenia AC (A)
15.2 / *180 / 15.2
Rated Input/Output Voltage/Range (V)
50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Connection Form
3-phase
DC Injection Current (mA)
<0.5%1n
Efficiency
Max. Efficiency
97.60%
Euro efficiency
97.00%
MPPT Efficiency
99.90%
Equipment Protection
Integration
Ochrona przed wyładowaniami atmosferycznymi na wejściu PV
Island Protection Monitoring
DC Polarity Reverse Connection Protection
DC Terminal Insulation Impedance Monitoring
Residual Current (RCD) Detection
AC Output Overcurrent Protection
AC Output Short Circuit Protection
Surge protection level
Surge Protection Level
DC typ II/AC typ III
Certificates and standards
Grid Regulation
CEI 0-21
VDE-AR-N 4105
NRS 097
IEC 62116
IEC 61727
G99
G98
VDE 0126-1-1
RD 1699
C10-11
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4
IEC/EN 62109-1
IEC/EN 62109-2
General
Operating Temperature Range (°C)
-40 to +60℃, >45℃ Derating
Type of Cooling
Intelligent Air Cooling
Soundpower level (dB)
< 45 dB
Communication with BMS
RS485; CAN
Weight (kg)
26
Size (mm)
396 szer. × 580 wys. × 230 gł.
Ingress Protection
IP65
Installation method
Wall mounted
Guarantee
5 years
To download
Zasoby dotyczące bezpieczeństwa i produktów
Manufacturer warranty 10 years
