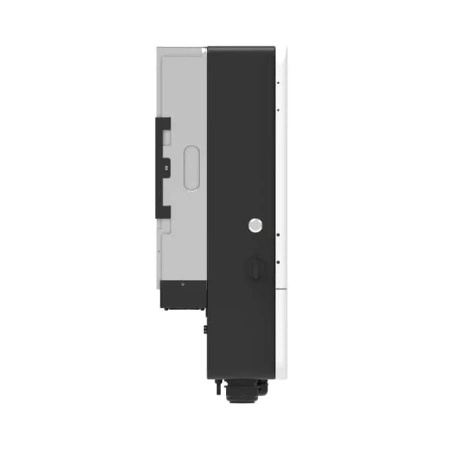

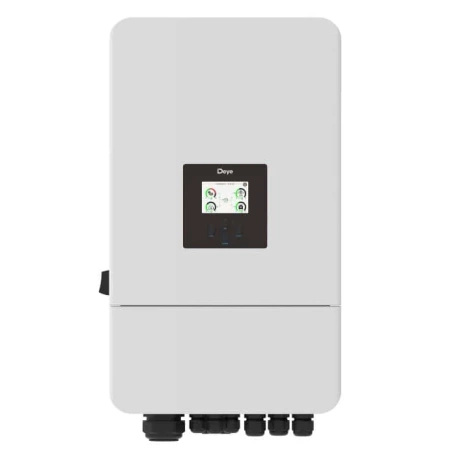

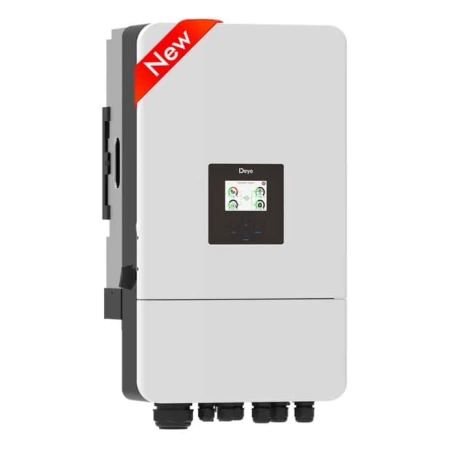

Deye SUN-6K-SG05LP3-EU Hybrid Inverter | 6 kW | 3-Phase | 2x MPPT | On/Off-Grid

The Deye SUN-6K-SG05LP3-EU is the true heart of a modern home or business energy system. This advanced three-phase inverter seamlessly integrates solar energy, batteries, and the electrical grid, ensuring reliable and efficient energy management. It's an ideal solution for both new photovoltaic installations and for expanding existing systems.

With the Deye SUN-6K-SG05LP3-EU, you gain extraordinary flexibility and control over your energy. The device allows for rapid energy storage and retrieval thanks to an impressive maximum charge and discharge current of 135A, ensuring your batteries are always ready for use. Even in the event of a grid outage, the inverter can work with a diesel generator, guaranteeing continuous power supply. If energy demand increases, the system can be easily expanded by connecting up to 10 units in parallel, in both on-grid and off-grid modes.

The Deye SUN-6K-SG05LP3-EU has been designed for maximum efficiency. It offers six programmable battery charge and discharge periods, allowing you to optimize energy consumption and adapt to energy tariffs. By utilizing 48V low-voltage batteries with transformer isolation, the inverter ensures safe and efficient energy storage. It is also capable of handling 100% unbalanced loads on each phase, with an output power of up to 50% of the rated power, which is extremely useful in variable conditions.

This model boasts a maximum PV input power of 9000W and a rated AC output power of 6000W, with a maximum AC apparent power of up to 6600VA. The inverter operates with an impressive maximum efficiency of 97.6% and an MPPT efficiency above 99%, meaning almost all of the solar energy produced will be converted into usable current. The inverter is extremely durable, capable of operating in temperatures from -40 to +60°C (with derating above 45°C) and has an IP65 protection rating, making it resistant to dust and water. It operates quietly, with a noise level below 55 dB. All of this is enclosed in a compact housing measuring 386×660×253 mm and weighing 35.2 kg, cooled by an intelligent air system.

The Deye SUN-6K-SG05LP3-EU is a comprehensive energy solution that combines efficiency, reliability, and flexibility, providing you with peace of mind and energy independence.
