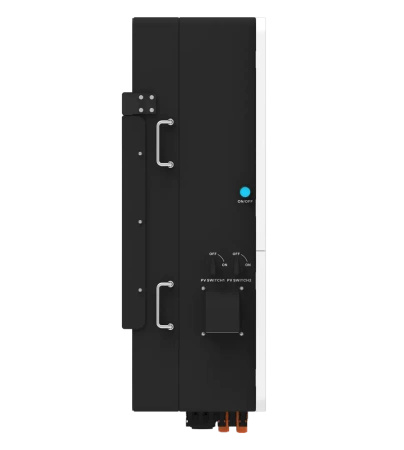

Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter.
Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter.
Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter.
Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter.
Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter.
Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter.
Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter.
Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter.

Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter.

+ Add to compareAdd to shopping list
  • Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter is an advanced device that combines the functions of a solar inverter and a battery inverter, enabling efficient energy management in photovoltaic installations.
Rated AC Input/Output Active Power (W)
800008000075000750006000060000
Size
one size
8 401,12 €
incl. VAT / szt.
Lowest price in 30 days before discount: / szt.
Regular price: / szt.
of
Go to B2B offer
Out of stock
Out of stock
14 days for easy returns
Safe shopping

Deye SUN-75K-SG02HP3-EU-EM6 three-phase hybrid inverter is an advanced device that combines the functions of a solar inverter and a battery inverter, enabling efficient energy management in photovoltaic installations.

Key features and benefits:

  • High efficiency: Maximum efficiency reaches 97.60%, and MPPT efficiency exceeds 99%.
  • Energy storage support: Ability to connect high-voltage batteries (160-1000V). Maximum charging/discharging current is 160A.
  • Flexibility: Cooperation with existing solar systems thanks to AC coupling. Parallel operation of up to 10 units, both on-grid and off-grid.
  • Intelligent battery management: 6 time periods for battery charging/discharging. Self-adaptation to the Battery Management System (BMS).
  • Safety and reliability: Integrated protections, including DC reverse polarity protection, AC overload protection, overvoltage protection, short circuit protection, leakage current monitoring, and many others. Optional arc-fault circuit interrupter.
  • Intelligent monitoring: The platform enables remote shutdown in case of failure, remote software updates, and parameter settings. Available monitoring options: GPRS/WIFI/Bluetooth/4G/LAN.
  • High power: Available models with AC rated power from 60kW to 80kW.
  • 6 MPPT: Six independent MPPT trackers, each with two inputs, enable optimization of energy production from photovoltaic panels.
  • Protection rating: IP65 – high resistance to weather conditions.
  • Diesel generator connection capability: Support for energy storage from a diesel generator.
  • Durability: Operating temperature range from -40 to +60℃.

Technical data:

  • Battery voltage range: 160-1000V.
  • Maximum PV input power: up to 160000 W (depending on the model).
  • PV input voltage: up to 1000V.
  • MPPT voltage range: 150-850V.
  • Rated AC input/output voltage: 220/380V, 230/400V.
  • Grid frequency range: 50/45-55, 60/55-65 Hz.

Application:

  • Photovoltaic installations in on-grid and off-grid systems.
  • Modernization of existing solar systems.
  • Emergency power supply systems.

Standards and certificates:

  • Compliance with standards: IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105.
  • Meets safety and EMC standards: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.

Warranty:

  • 5 or 10 years (depending on the installation location).
Brand
Deye
Symbol
SUN-75K-SG02HP3-EU-EM6
Producer code
SUN-75K-SG02HP3-EU-EM6
Battery Input Data
Battery type
Lithium-ion
Battery Voltage Range (V)
160-1000
Max. charge current (A)
80+80
Max. discharge current (A)
80+80
Charging Strategy for Li-ion Battery
Self-adaption to BMS
Number of Battery Input
2
Power supply DC PV String Input
Max. PV Input Power (W)
150000
Max. PV Input Voltage (V)
1000
Start-up Voltage (V) 160
180
MPPT Voltage Range (V)
150-850
Zakres nap. DC przy pełnym obciążeniu (V)
650
Max. Operating PV Input Current (A)
36+36+36+36+36+36
Max. Input Short-Circuit Current (A)
54+54+54+54+54+54
No.of MPPT Trackers / No.od Strings per MPPT Tracker
6/2+2+2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power (W)
75000
Peak Power (off-grid) (W)
1.5-krotność mocy znamionowej, 10 S
Power factor
0.8 leading to 0.8 lagging
Grid Connection Form
3-phase
Efficiency
Max. Efficiency
97.60%
Euro efficiency
97.00%
MPPT Efficiency
>99%
Equipment Protection
Integration
Ochrona przed wyładowaniami atmosferycznymi na wejściu PV, ochrona przed pracą wyspową, ochrona przed odwrotną polaryzacją na wejściu stringów PV, wykrywanie rezystancji izolacji, moduł monitorowania prądu resztkowego, ochrona przed nadmiernym prądem na w
Surge Protection Level
DC typ II/AC typ III
Certificates and standards
Grid Regulation
CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11
Safety / EMC Standard
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General
Guarantee
5 years
