Deye SUN-7K-G06P3-EU-BM2-P1 | three-phase grid inverter | 7 kW

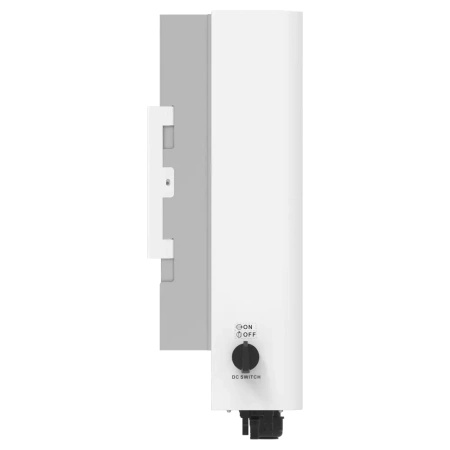

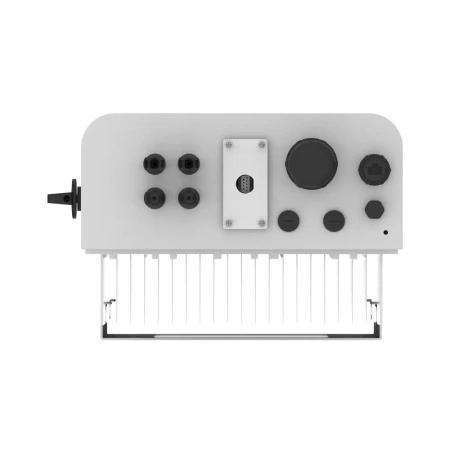

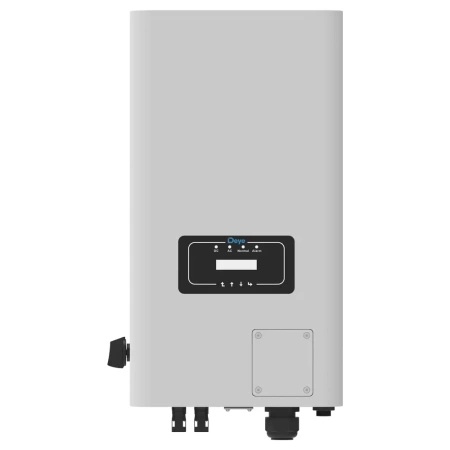

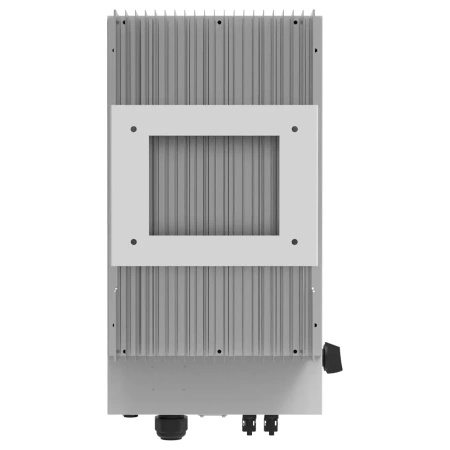

Deye SUN-7K-G06P3-EU-BM2-P1 – 7 kW Three-Phase Photovoltaic Inverter

Deye SUN-7K-G06P3-EU-BM2-P1 is a reliable three-phase inverter with 7 kW output power, designed for medium-sized photovoltaic installations in homes and businesses. With high efficiency of 98.3% and two MPPT trackers, it ensures efficient energy conversion under all conditions.

Main Features:

• Output power: 7 kW
• Max. PV input power: 10.5 kW
• 2 MPPT (2 × 20 A) – optimized performance under varying sunlight conditions.
• Wide MPPT voltage range: 120–1000 V
• High efficiency: 98.3% (European 97.7%)
• IP65 protection – resistant to outdoor conditions.
• Natural cooling – quiet and reliable operation.
• Full protection package: surge (DC/AC), overload, short-circuit, RCD, reverse polarity protection.
• Remote monitoring: WiFi, LAN, 4G, RS485/RS232 available.
• Zero export and VSG functions – compliance with grid operator requirements.

Technical Specifications (selected data):

• AC output power: 7 kW
• Max. efficiency: 98.3%
• European efficiency: 97.7%
• Operating temperature range: -25°C to +60°C
• Dimensions: 283 × 525 × 178 mm

✅ The ideal choice for medium-sized PV installations requiring stability, safety, and high performance.
