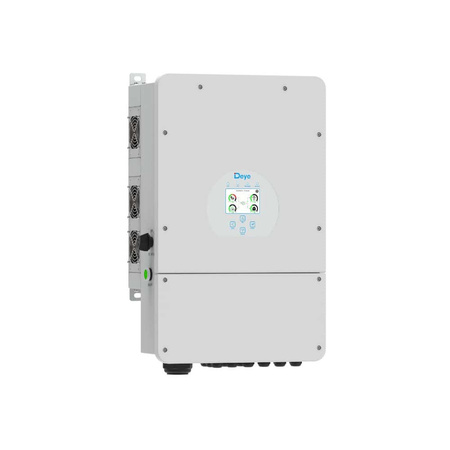

Deye SUN-8K-SG01LP1-EU hybrid inverter

Key Features and Benefits:

1. High Energy Efficiency:

• Maximum Efficiency: 97.6%, minimizing energy loss.
• MPPT Efficiency: >99%, enabling precise tracking of the maximum power point.
• Maximum PV Input Power: 16,000 W, allowing for the support of large installations.

2. Hybrid Functionality:

• Supports lithium-ion and lead-acid batteries.
• Maximum Charging/Discharging Current: 190 A – ensuring fast charging and reliable system operation.
• Parallel connection of up to 16 units to increase system power and efficiency.

3. Advanced Security Features:

• Type II surge protection (AC/DC).
• Integrated monitoring systems for DC components, islanding protection, and ground fault current.
• Optional arc fault circuit interrupter (AFCI) for added safety.

4. Intuitive Management:

• Color touchscreen LCD display for easy monitoring of operating parameters.
• Communication: RS485, WiFi, Bluetooth, 4G, LAN (optional), enabling remote system monitoring.

5. Durability and Versatility:

• IP65 protection level – dustproof and waterproof, ideal for outdoor installations.
• Operating temperature range from -40°C to +60°C allows for installation in harsh environmental conditions.
• Low noise level (< 30dB).

Why Choose the SUN-8K-SG01LP1-EU?

The SUN-8K-SG01LP1-EU inverter is a comprehensive solution that meets the needs of both home and commercial installations. By partnering with Marsun Solar Energy I, the official Deye distributor, you gain:

• Fast device availability.
• Professional technical support and advice.
• Access to installation and configuration training.

The SUN-8K-SG01LP1-EU hybrid inverter is a device that combines advanced technology and reliability, ideal for professional PV installers.
