Set of Inverter SUN-15K-SG01HP3-EU, 4x Battery module, 1x BMS, 1x rack can

We present a comprehensive energy storage kit, ideal for modern photovoltaic installations – SUN-15K-SG01HP3-EU Inverter Set with 4 BOS-GM5.1 Batteries, HVB750V/100A-EU BMS Module, and 3U-LRACK Rack Cabinet. This advanced solution ensures uninterrupted power supply, high energy efficiency, and full control over energy management at home or in business.

Main components of the set:

1. Deye SUN-15K-SG01HP3-EU Hybrid Inverter (15 kW, three-phase)

• High-voltage 15 kW hybrid inverter supporting battery voltage range from 96–600 V.

• Two independent MPPT inputs with 200–850 V range for optimal maximum power point tracking.

• Maximum DC input power: 19.5 kW, with charge/discharge current of up to 37 A.

• Supports on-grid and off-grid operation, with UPS function and diesel generator compatibility.

• High efficiency up to 97.6% (MPPT: 99.9%), with smart cooling and quiet operation (<45 dB).

• IP65 protection level for outdoor installation.

2. 4x Deye BOS-GM5.1 Battery Modules

• Each module has 5.1 kWh capacity, totaling 20.4 kWh of effective energy storage.

• High-voltage lithium-ion batteries for long lifespan and high performance.

• Modular design allows for easy future expansion.

3. Deye HVB750V/100A-EU BMS Module

• Advanced Battery Management System (BMS) ensures safety and optimal battery operation.

• Communicates with the inverter via RS485 and CAN interfaces for monitoring and control.

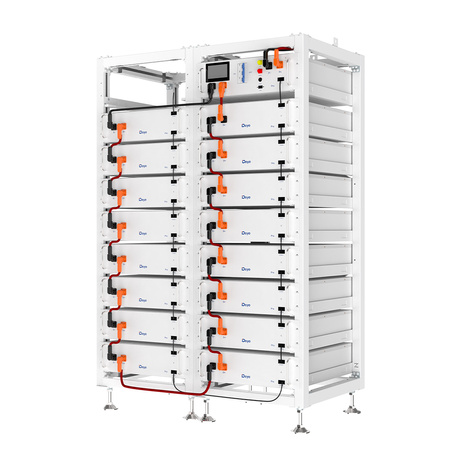

4. 3U-LRACK Rack Cabinet

• Robust rack cabinet suitable for up to 8 battery modules and the BMS controller.

• Compact design ensures easy installation and an aesthetic system layout.

✅ Key advantages of the set:

• Comprehensive solution for energy storage, ideal for photovoltaic systems.

• High energy efficiency thanks to advanced inverter and battery modules.

• System flexibility and scalability for future expansion.

• Safety and reliability ensured by the advanced BMS system.

• Aesthetic and compact design for seamless integration into existing infrastructure.

The kit available at EnergoShop is the perfect choice for those seeking a reliable and efficient energy storage solution.
