Solis S6-EH1P4.6K-L-PLUS | Hybrid Inverter | 4.6 kW | 1-phase | LV

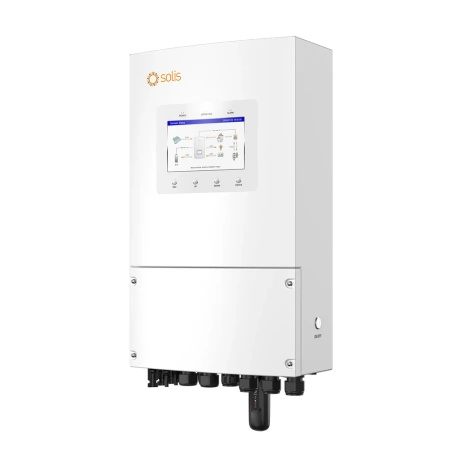

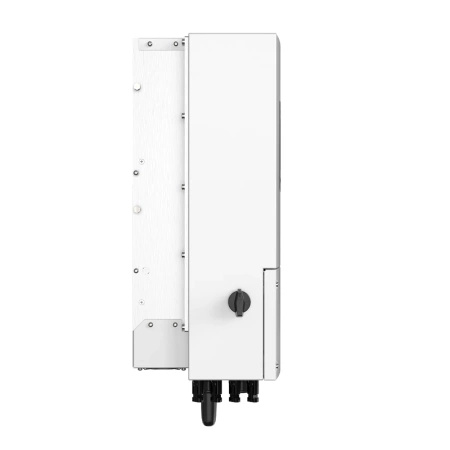

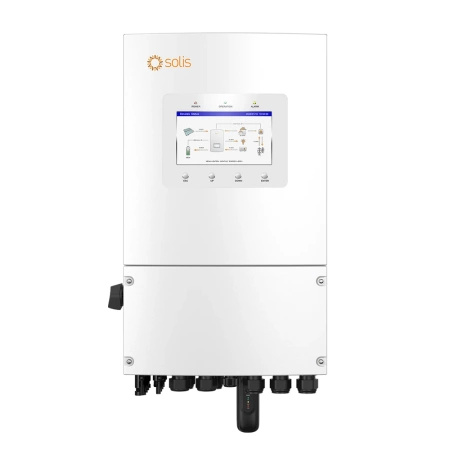

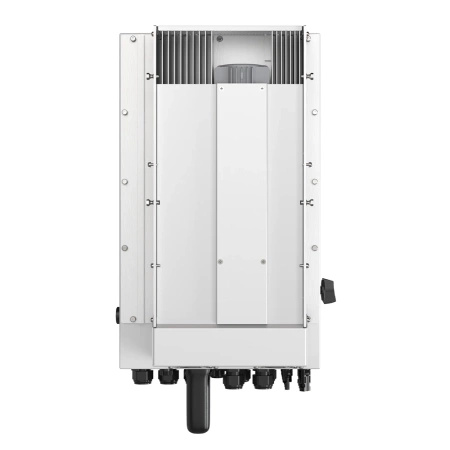

Solis S6-EH1P4.6K-L-PLUS Hybrid Inverter

For homes with growing energy needs seeking expanded capabilities and flexibility, the Solis S6-EH1P4.6K-L-PLUS hybrid inverter is a smart investment in your energy future. This single-phase, low-voltage PV energy storage inverter is ideal for scenarios requiring advanced system management, offering a rated output power of 4.6 kW and a maximum apparent power of 4.6 kVA for both grid and backup sides. Its high efficiency is guaranteed by its ability to accept an MPPT input current of up to 16 A, enabling effective use of a wide range of photovoltaic panels, including high-power ones. To make the most of your PV potential, this inverter supports PV input power up to 160%.

The S6-EH1P4.6K-L-PLUS model stands out for its exceptional flexibility and scalability, which are key for evolving energy systems. Multiple inverters can be connected in parallel, creating a single-phase or three-phase system with a maximum output power of up to 48 kW. This feature allows for easy capacity expansion as your home’s energy needs grow. The inverter is also compatible with popular lithium and lead-acid batteries (40–60 V), and thanks to its AC coupling function, it can be integrated with existing PV installations, providing an excellent solution for system upgrades. This ensures maximum use of already installed components.

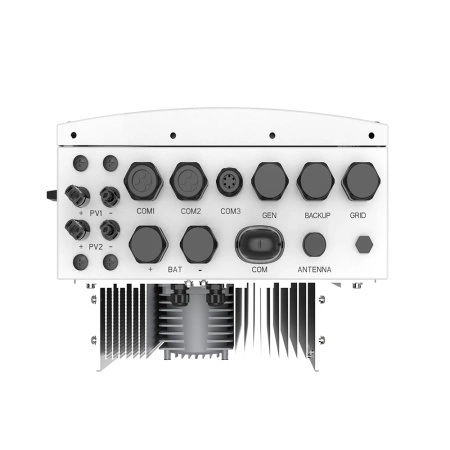

This inverter is equipped with advanced load management functions, including support for dual backup ports to intelligently control both critical and non-critical loads. The smart load shedding function further increases energy efficiency by prioritizing power for essential devices. In the event of a grid power failure, the Solis S6-EH1P4.6K-L-PLUS ensures unmatched power stability, keeping loads running regardless of a weak grid or generator fluctuations. Combined with a switchover time of less than 4 ms and a 10-second overload capacity of up to 200% of nominal power, it guarantees uninterrupted operation of even the most sensitive equipment.

By investing in the Solis S6-EH1P4.6K-L-PLUS, you choose reliability and safety. The device has an IP66 protection rating and can operate in a wide temperature range from -40°C to +60°C, making it ideal for outdoor installations. Easy and quick configuration via the 7-inch LCD screen and Bluetooth app ensures intuitive system management for every user. This inverter guarantees a stable and safe energy source for your home, today and in the future.
