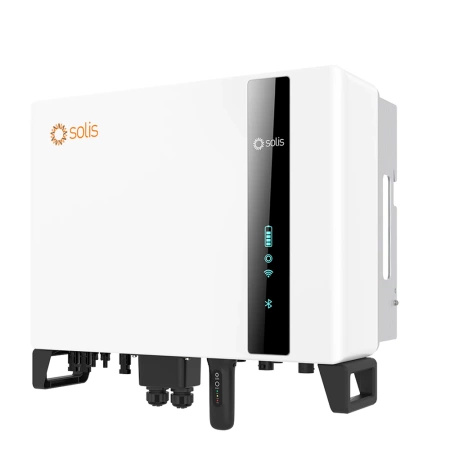

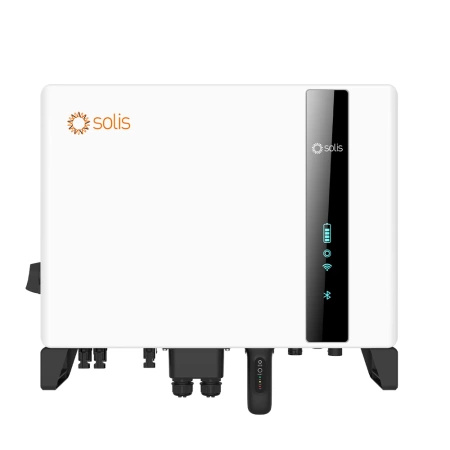

Solis S6-EH3P10K-H-EU Hybrid Inverter | 10kW | 3-phase | HV

Introducing the innovative heart of your residential or commercial photovoltaic system – the Solis S6-EH3P10K-H-EU hybrid inverter. This advanced inverter is much more than just a device for converting energy; it’s an intelligent management hub that provides you with energy independence, significant savings, and peace of mind knowing your power is always under control.

Nowadays, with electricity prices often surprising us and environmental concerns becoming a priority, investing in a smart energy management system is simply a decision that pays off. The Solis S6-EH3P10K-H-EU, available at EnergoShop.eu, is the answer to these challenges. With it, you will not only harness the full potential of your solar panels but also optimize your energy consumption, minimizing your dependence on the grid.

Solis S6-EH3P10K-H-EU: a revolution in energy management – say goodbye to high bills!

Imagine a day when solar energy, instead of being sent back to the grid for pennies or wasted, is intelligently stored and used exactly when you need it. With the Solis S6-EH3P10K-H-EU inverter, this becomes reality. This three-phase hybrid inverter can connect both solar panels and a high-voltage battery.

How does this system work? During the day, when the sun is shining strongest, the Solis inverter captures the generated solar energy. It uses it to power devices in your home or business and directs any surplus to charge the high-voltage battery. When dusk falls and solar production drops to zero, the Solis S6-EH3P10K-H-EU automatically switches to the stored battery energy. This way, instead of drawing expensive power from the grid, you use your own free resources. It’s not just a way to reduce grid energy consumption to zero but also an effective “fight against electricity bills.”

Key features that make the Solis S6-EH3P10K-H-EU stand out:

This inverter is designed for maximum performance, flexibility, and safety, offering a range of features that make it a market-leading solution in its class.

1. Smart energy management – optimization at the highest level:

   • Seamless integration with VPP and EMS: The Solis S6-EH3P10K-H-EU integrates effortlessly with Virtual Power Plant (VPP) platforms and Energy Management Systems (EMS). This allows for better optimization of your facility’s energy consumption, which is crucial in a dynamic energy market.
   • AI and TOU Tariffs: Thanks to advanced artificial intelligence, the Solis inverter intelligently manages battery charging and discharging processes based on Time-of-Use (TOU) tariffs. This means the system can charge the battery when energy is cheaper (e.g., at night from the grid if the Allow Grid Charging function is enabled) and discharge it when energy is most expensive, maximizing your savings.
   • Peakshaving Mode: The Solis S6-EH3P10K-H-EU also offers a peakshaving mode. It allows you to set the maximum power that the system can draw from the main grid. When the energy demand exceeds this limit, the shortfall is supplied from the battery. This helps effectively reduce costs associated with peak demand charges.

2. Exceptional efficiency and reliability – maximum energy production guaranteed:

   • High efficiency: The Solis S6-EH3P10K-H-EU inverter achieves an impressive maximum efficiency of 97.90%. The European efficiency (EU) is 97.51%. Additionally, the PV-to-battery charge/discharge efficiency is up to 98.31%, and battery-to-AC charge/discharge efficiency is 97.50%. The MPPT efficiency is as high as 99.90%. These figures ensure minimal energy loss during conversion.
   • Ultra-fast UPS switching (< 10 ms): In case of a grid power failure, the Solis S6-EH3P10K-H-EU automatically switches to battery power in less than 10 milliseconds. This is crucial for sensitive devices that require uninterrupted power supply.
   • Impressive PV input power (160%): The inverter supports PV input power up to 160% of its rated power. For the 10K model, this means that with a nominal power of 10 kW, the maximum usable PV input power is 16 kW for 60 seconds. This allows for maximum solar energy utilization even under optimal sunlight conditions without the risk of overloading the inverter.
   • Four integrated MPPTs (4/4): The S6-EH3P10K-H-EU model is equipped with four independent MPPT trackers (Maximum Power Point Tracking) and supports four string inputs. This provides flexibility in system design, allowing panels with different orientations (e.g., east-west) or tilt angles to be connected, minimizing power losses due to shading or uneven exposure.
   • Support for three-phase unbalanced output: The Solis inverter allows for three-phase unbalanced output, meaning up to 50% of the inverter’s rated power can be delivered to a single phase. The maximum allowable phase imbalance is 100%. This is an extremely useful feature that enables flexible load management in the facility, adapting to actual demand on each phase.

3. Flexibility and scalability – a system tailored to your needs:

   • Wide battery compatibility: The Solis S6-EH3P10K-H-EU is compatible with many popular lithium battery brands. This gives you the freedom to choose the battery that best suits your needs and budget. The battery voltage range is 120 - 600 V, with support up to 700 Vdc if clearly marked on the product and packaging.
   • Easy system expansion: You can easily increase your energy system’s capacity thanks to the possibility of parallel connections and AC coupling. The system supports parallel connection of up to 6 inverters. This makes the Solis inverter an ideal solution for both current and future energy needs, allowing you to expand as your energy demand grows.

4. Simple and quick configuration – saving time and effort:

   • Intuitive Bluetooth app operation: Configuring the inverter is extremely quick and intuitive thanks to Bluetooth app support. Simply connect to the inverter using your smartphone to perform initial settings and monitor its operation.
   • Factory-prepared wiring: To minimize installation time, the Solis S6-EH3P10K-H-EU comes with factory-prepared wiring for batteries, meters, and CAN communication. This makes installation significantly easier and faster, resulting in lower installation costs.

5. Power and performance of the Solis S6-EH3P10K-H-EU in numbers:

   • Peak PV input power: 16 kW.
   • Maximum battery charge/discharge power: 10 kW.
   • Maximum battery charge/discharge current: 50 A.
   • Rated output power (grid side): 10 kW.
   • Peak apparent output power (backup status): 16 kVA for 60 seconds.
   • Battery voltage range: 120-600V (up to 700Vdc if marked on the product).
   • Number of MPPTs: 4 / 4.
   • Dimensions (W × H × D): 600 × 500 × 230 mm.
   • Weight: 30.2 kg.

6. Safety and durability – peace of mind for years:

   • IP66 protection rating: The Solis inverter has an IP66 protection rating, meaning it is fully resistant to dust and powerful water jets. You can be confident that the device will operate reliably even in harsh environmental conditions.
   • Comprehensive protections: The Solis S6-EH3P10K-H-EU is equipped with numerous protective mechanisms to ensure safe and stable operation:
     • Anti-islanding protection.
     • Output overcurrent protection.
     • Short circuit protection.
     • Integrated DC switch.
     • DC reverse polarity protection.
     • PV overvoltage protection.
     • Battery reverse protection.
     • Insulation resistor detection.
     • Residual current monitoring unit.
     • Optional integrated AFCI 2.0 (Arc Fault Circuit Interrupter) which detects and prevents arc faults, increasing installation safety.
   • Operating temperature range: The inverter can operate in a wide temperature range from -25°C to +60°C, proving its durability.
   • Low noise level: Thanks to natural convection cooling, the Solis S6-EH3P10K-H-EU operates extremely quietly, with a noise level below 46.9 dB(A), comparable to a quiet refrigerator.
   • Low self-consumption (at night): The inverter’s night-time self-consumption is just < 25 W, minimizing energy loss.

7. Monitoring and control – full system visibility:

   • SolisCloud APP/Web: The system allows remote monitoring via WiFi, LAN, or 4G. An optional communication module (Data Logging Stick) provides access to the SolisCloud platform (mobile app and web browser). This lets you check energy production, consumption, battery status, and alerts anytime, giving you full control over your system.
   • Local Bluetooth access: A built-in Bluetooth module is available for quick local configuration and debugging. LED indicators on the device show its operating status.

8. Various operating modes – tailor it to your lifestyle:

   • Self-Use Mode: This mode prioritizes powering household loads from PV panels, storing any surplus energy in the battery. If the battery is charged or not installed, the surplus can be exported to the grid.
   • Feed in Priority Mode: In this mode, the system first powers household loads, then exports any surplus to the grid. Only after meeting export limits is the remaining PV energy stored in the battery.
   • Off-grid Mode: Intended for systems not connected to the electrical grid. Like Self-Use Mode, PV energy powers loads and charges the battery, but production is limited if the battery is full and loads are low.
   • Peakshaving Mode: Controls the maximum power drawn from the main grid, using the battery to meet peak demand, helping lower energy costs.
   • Time of Use Settings: Allows manual scheduling of when the battery can be charged and discharged and at what power, based on a time-of-use plan. This feature is key for cost optimization based on different energy tariffs.

Why choose the Solis S6-EH3P10K-H-EU from EnergoShop.eu?

At EnergoShop.eu, we are committed to delivering only proven and highly efficient photovoltaic solutions. The Solis S6-EH3P10K-H-EU inverter is an investment that brings real benefits and a sense of energy security.

Additionally, Solis, the manufacturer of this inverter, offers a 5-year warranty. This demonstrates the manufacturer’s unwavering confidence in the quality and durability of its product and means years of trouble-free operation and peace of mind for you.

As EnergoShop.eu, we are your partner on the path to energy independence. We offer not only excellent products but also expert advice and support at every stage.

Don’t wait! Take control of your energy today and join the ranks of satisfied users!
