Solis S6-EH3P10K02-NV-YD-L | Hybrid Inverter | 10 kW | 3-phase | LV

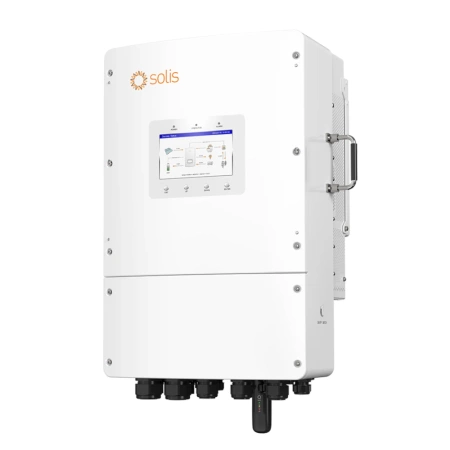

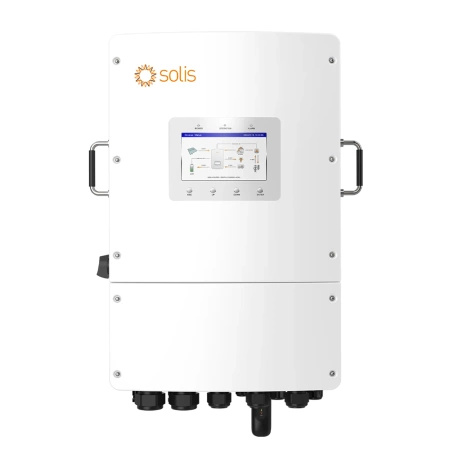

Solis S6-EH3P10K02-NV-YD-L Hybrid Inverter – Power and Stability for Your Energy Independence

In an era of growing environmental awareness and the pursuit of self-sufficiency, the Solis S6-EH3P10K02-NV-YD-L forms the foundation of a modern photovoltaic system. This three-phase, low-voltage hybrid inverter is designed to meet the demands of large households, efficiently storing solar energy and ensuring uninterrupted power supply. By choosing Solis, you invest in a future of zero-emission energy.

Advanced Energy Management

The Solis S6-EH3P10K02-NV-YD-L inverter integrates with Energy Management Systems (EMS) and Virtual Power Plant (VPP) platforms, enabling advanced consumption optimization. With a built-in SG-ready heat pump control function and intelligent charging/discharging based on Time-of-Use (TOU) tariffs, the inverter maximizes financial benefits and efficiency.

Maximum Reliability and Power Security

A nominal output power of 10 kW and maximum apparent output power of 10 kVA provide stable power for your home. The inverter guarantees continuity of operation with a switching time below 10 ms, ensuring instant backup power in UPS mode. The system is designed to maintain load stability regardless of weak grids or generator fluctuations. Additionally, it supports 200% overload for 10 seconds, which is crucial during sudden spikes in energy demand. Multi-level protections, such as anti-islanding, overload, short-circuit, surge, and backfeed protection, ensure safe operation.

Optimal Solar Energy Utilization

This model supports a maximum input current of 20A, making it ideal for use with modern high-power PV modules. This allows for 160% PV input power relative to the inverter's rated power, maximizing your solar installation’s potential. High conversion efficiency, with a maximum efficiency of 97.6% and MPPT tracking efficiency of 99.9%, translates into real savings. The inverter is equipped with 2 MPPTs and supports 3 input strings.

Versatility and Easy Expansion

The Solis S6-EH3P10K02-NV-YD-L inverter offers flexible configuration. Compatibility with a wide range of lithium and lead-acid batteries and an impressive maximum battery charge/discharge current of up to 220 A ensure efficient energy storage. The system allows parallel connection of up to six units of the same type, creating an advanced microgrid for increased power and security. It also supports unbalanced three-phase loads, delivering up to 50% of the rated power per phase. Generator connection and integration with existing AC-coupled installations further enhance its functionality.

Intuitive Operation

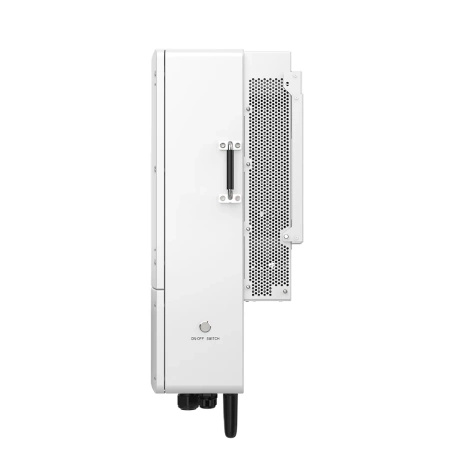

The inverter is exceptionally easy to operate thanks to a 7-inch LCD screen and Bluetooth mobile app support, enabling quick setup and monitoring. The device, measuring 430 × 660 × 305 mm and weighing 42 kg, operates quietly below 65 dB(A) and features intelligent fan cooling.

By choosing the Solis S6-EH3P10K02-NV-YD-L from energoshop.eu, you gain not only a high-quality product but also peace of mind with a 5-year warranty. Provide your home with an efficient, reliable, and future-ready energy source.
