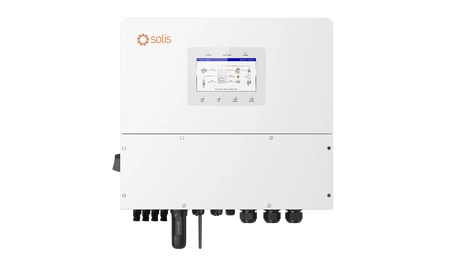

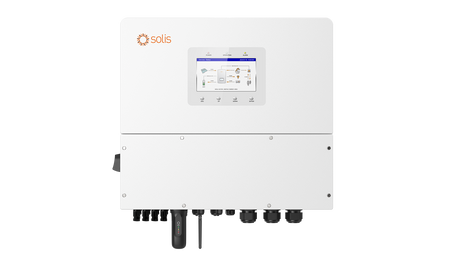

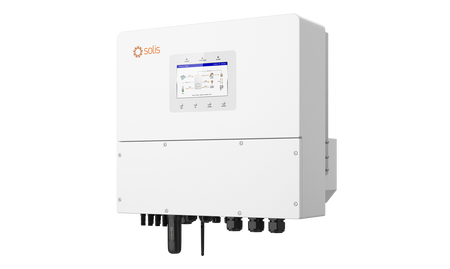

Solis S6-EH3P12K-H-EU Hybrid Inverter | 12kW | 3-phase | HV

We invite you to discover the innovative Solis S6-EH3P12K-H-EU hybrid inverter, available at Energoshop.eu! This three-phase, high-voltage energy storage inverter is the ideal solution for modern photovoltaic installations, ensuring reliability and energy efficiency.

Key features and benefits:

• Generator compatibility: The Solis S6-EH3P12K-H-EU inverter can work with generators, providing longer backup power during grid outages. Additionally, it supports AC voltage detection from both the grid and the generator, protecting generators from backfeeding.
• Smart load management: Thanks to dual backup ports, the inverter enables intelligent control of both critical and non-critical loads.
• Wide PV compatibility: It supports a maximum input current of 4×20A, making it compatible with high-power photovoltaic modules from any manufacturer.
• Peak shaving function: The inverter supports peak shaving, allowing for optimized energy consumption and cost reduction.
• Load flexibility: Supports unbalanced and half-wave loads on both the grid and backup ports.
• High efficiency: The maximum inverter efficiency is 97.7%, and MPPT efficiency reaches 99.99%, guaranteeing optimal use of solar energy.

Technical specifications (model S6-EH3P12K-H):

• Maximum input voltage (PV side): 1000 V
• Recommended PV generator power: 19.2 kW
• Maximum usable PV input power: 24 kW
• Number of MPPTs/Maximum number of string inputs: 4/4
• Battery type: Lithium-ion
• Battery voltage range: 120–800 V
• Maximum battery charge/discharge power: 12 kW
• Rated AC output power: 12 kW
• Maximum apparent AC output power: 12 kVA
• Backup switching time: Less than 10 ms
• Protection rating: IP66
• Dimensions (W × H × D): 563 × 546 × 250 mm
• Weight: 35.2 kg
• Display: 7.0" LCD with Bluetooth and app
• Communication: CAN, RS485, Ethernet (optional Wi-Fi, Cellular, LAN)

Choose the Solis S6-EH3P12K-H-EU inverter to ensure reliable and efficient energy management for your home or business.
