Solis S6-EH3P15K02-NV-YD-L Hybrid Inverter – Peak Power and Independence for the Largest Home PV Installations

For those striving for complete energy independence and owning extensive photovoltaic systems, the Solis S6-EH3P15K02-NV-YD-L is the epitome of innovation. This three-phase low-voltage hybrid inverter is designed to meet the highest energy demands of large households, efficiently managing the stored solar energy. With it, your home can achieve net-zero carbon energy consumption.

Highest Level of Intelligent Energy Management

The Solis S6-EH3P15K02-NV-YD-L offers advanced features that optimize energy usage like never before. Integrated control for SG-ready heat pumps and seamless integration with VPP (Virtual Power Plant) and EMS (Energy Management System) platforms ensure full control and maximum efficiency. Moreover, intelligent battery charging and discharging management, based on artificial intelligence and Time-of-Use (TOU) tariffs, helps optimize costs and increase savings.

Guaranteed Reliability and Safety

This model features an impressive rated output power of 15 kW and a maximum apparent output power of 15 kVA, providing ample power reserves for your home. A switching time of less than 10 ms guarantees immediate and smooth transition to backup power, acting as a reliable UPS system. The inverter is designed to maintain stable power supply even under weak grid conditions or unstable generator operation. Additionally, its ability to handle 200% overload for 10 seconds demonstrates exceptional durability and reliability. A comprehensive set of protections, including anti-islanding, output overcurrent, short circuit, DC and AC surge protection, and DC reverse polarity, ensures the safety of the entire installation.

Maximizing Panel Potential

The Solis S6-EH3P15K02-NV-YD-L is fully compatible with the most powerful photovoltaic modules on the market, supporting a maximum input current of 40A. It provides 160% PV input power relative to its rated output, enabling maximum utilization of your solar installation’s potential. With a maximum efficiency of 97.6% and MPPT efficiency of 99.9%, you achieve unmatched energy conversion performance. The inverter has 2 MPPTs and supports 4 input strings.

Limitless Flexibility and Scalability

This inverter offers ultimate flexibility in energy management. It is compatible with a wide range of lithium and lead-acid batteries, and its exceptional maximum battery charge/discharge current of up to 290 A allows for rapid and efficient use of stored energy. The system supports three-phase unbalanced output, delivering up to 50% of the inverter’s rated power to a single phase, which is key for flexible load management. The option to parallel connect up to six inverters of the same model creates a powerful and redundant microgrid. Integration with generators and existing PV systems (AC-coupled) further expands the system’s capabilities.

Easy Configuration and Monitoring

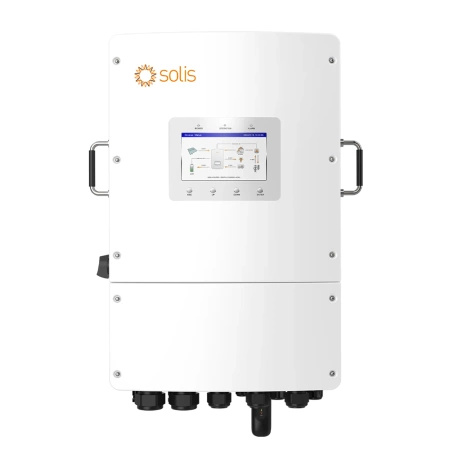

The large 7-inch LCD screen ensures intuitive operation, and support for a Bluetooth mobile app enables quick and easy configuration via smartphone. The inverter is weather-resistant with an IP66 protection rating and can operate in a wide temperature range from -40℃ to +60℃.

By choosing the Solis S6-EH3P15K02-NV-YD-L from energoshop.eu, you are opting for a flagship solution in home energy. Ensure your home’s full energy independence today.
