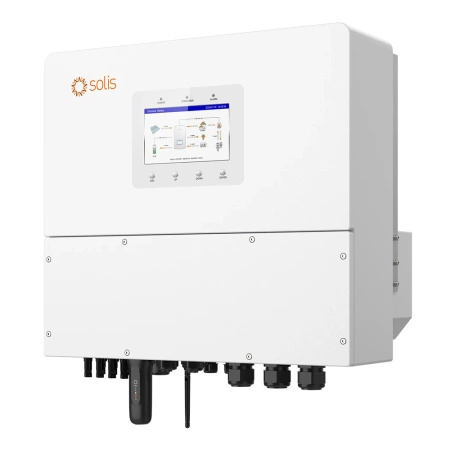

Solis S6-EH3P20K-H Hybrid Inverter | 20kW | 3-phase | HV

Solis S6-EH3P20K-H – three-phase hybrid inverter, represents the essence of modern energy storage solutions. This advanced inverter, designed for large residential photovoltaic systems and small commercial installations, guarantees reliability, safety, and high capacity.

Key features and benefits that distinguish the Solis S6-EH3P20K-H:

• Versatile application: This inverter is the perfect solution for PV systems with energy storage. It supports grids with generators, providing extended backup time during power outages, increasing the energy independence of your home or business.
• Smart energy management: With built-in control for SG-ready heat pumps and seamless integration with VPP (Virtual Power Plant) and EMS (Energy Management System) platforms, the Solis S6-EH3P20K-H optimizes energy use. Artificial intelligence intelligently manages battery charging and discharging based on TOU (Time-of-Use) tariffs, maximizing your savings.
• Outstanding performance: The inverter features high efficiency (max. efficiency 97.7%, MPPT efficiency 99.9%). It provides 160% PV input power, maximizing solar energy utilization. The switch-over time to backup power is less than 10 ms, ensuring smooth transition and uninterrupted power supply for your loads.
• Flexibility and scalability: The Solis S6-EH3P20K-H is compatible with popular lithium batteries (voltage range 120-800 V). It allows easy capacity expansion through parallel connections – you can connect up to 6 inverters in parallel, increasing total system power and flexibility. It also supports AC coupling.

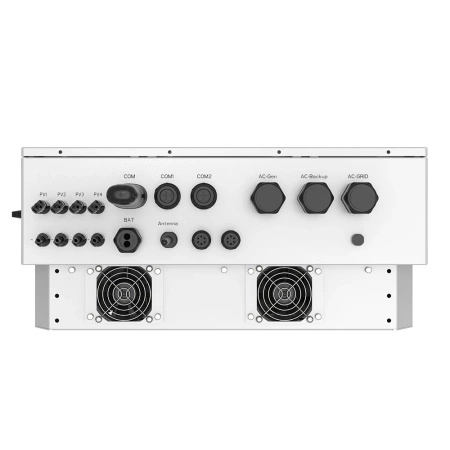

• Advanced load support: The device is equipped with 4 MPPTs, making it an ideal solution for systems with different roof orientations and complex structures. It supports unbalanced three-phase loads, allowing up to 40% of the inverter's rated power per phase, ensuring reliable power supply for diverse energy needs.

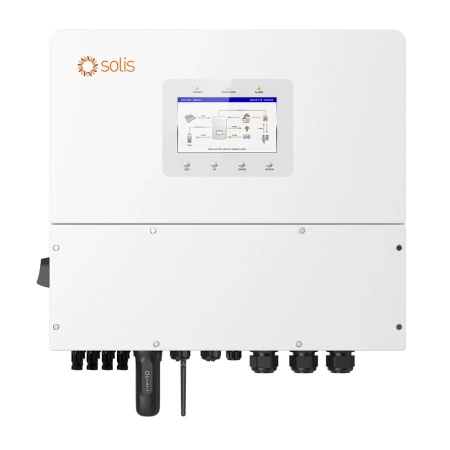

• Simple and quick setup: An intuitive 7-inch LCD screen and Bluetooth app support enable fast and easy configuration of the inverter's operating parameters.

Solis S6-EH3P20K-H technical data at a glance:

• Rated power: 20 kW (grid output and backup power).
• Max. usable PV input power: 32 kW.
• Max. PV input current: 4x20 A.
• Max. battery charge/discharge power: 20 kW.
• Protection rating: IP66, providing high resistance to dust and water.
• Noise level: < 65 dB(A).
• Dimensions (W x H x D): 563 x 546 x 250 mm.

At EnergoShop.eu, we focus on proven and innovative solutions. The Solis S6-EH3P20K-H is a hybrid inverter that combines high performance, safety, and flexibility, meeting the needs of the most demanding users. Contact us to learn more and invest in the future of your energy!
