Solis S6-EH3P8K02-NV-YD-L | Hybrid Inverter | 8 kW | 3-phase | LV

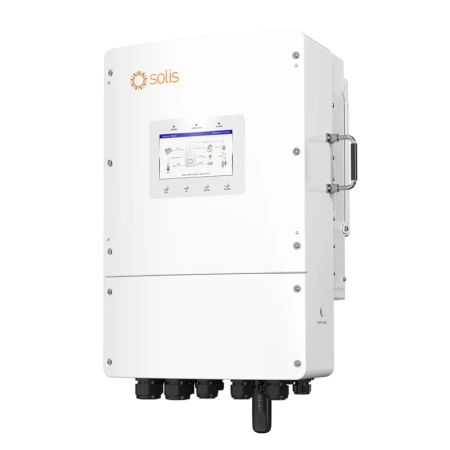

Solis S6-EH3P8K02-NV-YD-L Hybrid Inverter – the reliable heart of your home PV system

In today’s world, where energy independence is becoming a priority, choosing the right inverter is crucial. Introducing the Solis S6-EH3P8K02-NV-YD-L, a three-phase low-voltage hybrid inverter designed for efficient energy management in large residential photovoltaic systems. This is not just a device but a comprehensive solution that helps minimize your household’s carbon footprint and achieve true energy independence.

Smart energy management: The Solis S6-EH3P8K02-NV-YD-L stands out with advanced energy management features. With built-in SG-ready heat pump control and seamless integration with VPP and EMS platforms, the system optimizes energy use intelligently. Moreover, artificial intelligence manages battery charging and discharging based on Time-of-Use (TOU) tariffs, maximizing your savings.

Exceptional reliability and safety: Safety and stability are the foundation of this inverter’s operation. It offers an ultra-fast power source switching time (under 10 ms), ensuring a smooth transition to backup power during outages. The inverter also supports 200% overload for 10 seconds, guaranteeing stable power supply even under sudden, high loads. This model is equipped with numerous protections, including anti-islanding, short-circuit, output overcurrent, surge protection, and DC reverse polarity protection.

Maximized performance: The rated output power of 8 kW and maximum apparent output power of 8 kVA make the Solis S6-EH3P8K02-NV-YD-L a powerful energy hub for your home. The inverter allows for 160% PV input power, effectively maximizing solar energy utilization. With a high maximum efficiency of 97.6% and MPPT efficiency of 99.9%, every ray of sunlight is converted into usable energy with unmatched efficiency. The inverter supports a maximum PV input current of 20A and a maximum short-circuit current of 30A/50A.

System flexibility and scalability: This model is compatible with popular lithium and lead-acid batteries, offering a maximum charge/discharge current of up to 180 A. The system supports three-phase unbalanced output, allowing up to 50% of the inverter’s rated power per phase. You can also easily expand system capacity through parallel connections, enabling up to 6 inverters of the same model to be connected in a microgrid. The inverter is compatible with generators and existing PV installations (AC-coupled). It operates in three modes: self-consumption, sell-first, and off-grid.

User convenience: The inverter’s configuration is simple and quick thanks to a 7-inch LCD screen providing intuitive operation. Additionally, Bluetooth app support allows for instant and easy setup via smartphone. Monitoring is possible via CAN, RS485, Ethernet, and optionally Wi-Fi, Cellular, or LAN. The device operates in a temperature range from -40℃ to +60℃ and has an IP66 protection rating, ensuring durability in various conditions.

At energoshop.eu, we focus on products that combine innovation, performance, and safety. The Solis S6-EH3P8K02-NV-YD-L inverter is an investment in your home’s energy future, ensuring reliability and cost optimization. Choose an ecological and economical solution that will help you achieve zero-emission energy independence.
